Industrial Pancake Production Line: From Batter to Finished Product

The pancake production line begins with an automated mixing station. Electronic scales measure dry flour, sugar, and leavening agents with high precision. Liquid milk, eggs, and oil are added through flow meters. This closed loop system guarantees that every batter batch has the identical formulation.

After mixing, the batter transfers to a holding tank with gentle stirring. From this tank, a depositing pump delivers the batter to the baking zone. The depositing head releases a set volume of batter onto a hot steel plate. The plate temperature is regulated by an advanced electronic controller. This controller adjusts the electric heating elements in real time. It maintains the exact heat needed for each recipe. A mechanical flipper turns each pancake at the perfect moment. This action produces even golden colour on both surfaces. The baking time is also digitally controlled to achieve a soft interior and a light crust.

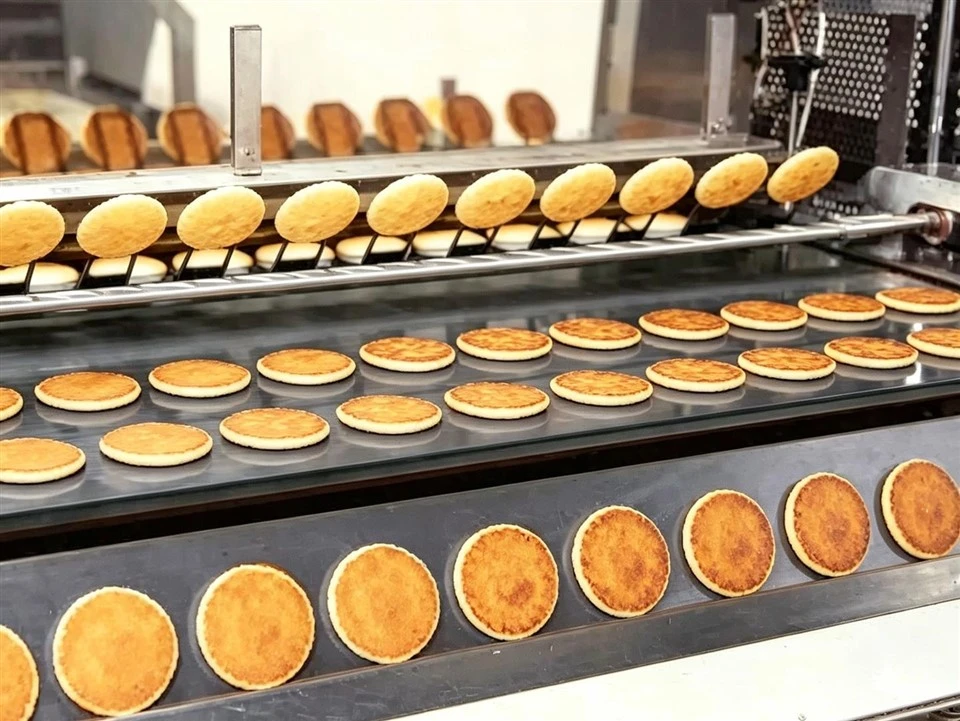

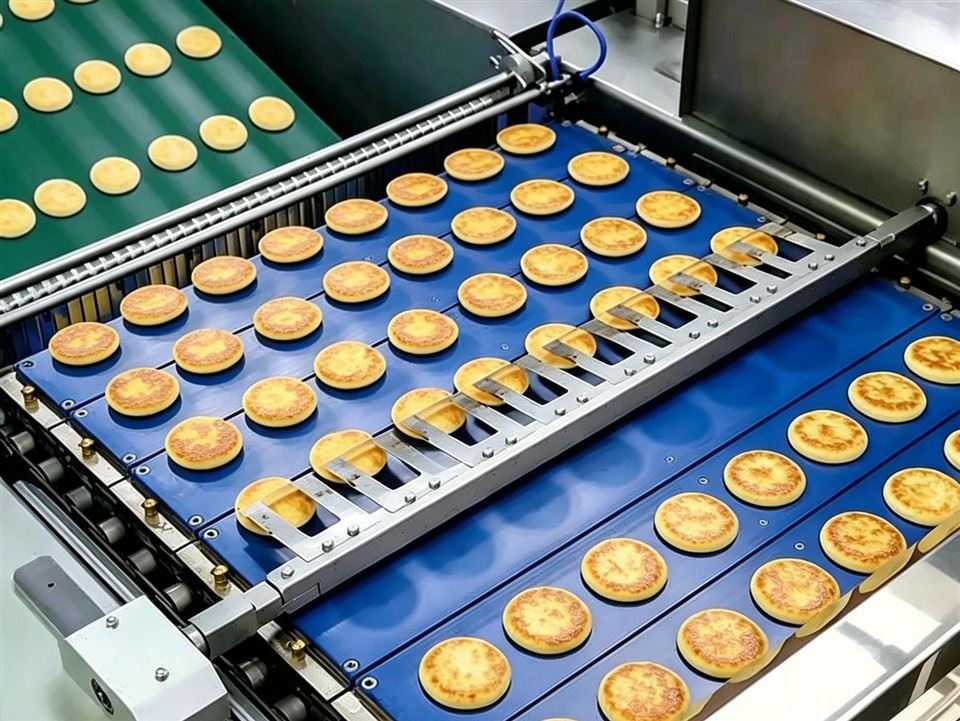

Once baked, the pancakes move along a cooling conveyor. They can exit the line as plain pancakes for direct packaging. Alternatively, the same line can connect to a filling attachment. This attachment deposits sweet red bean paste, custard, or chocolate cream between two pancakes. The machine then presses them gently to form a pancake sandwich, which is widely known as dorayaki.

Our electronic system provides major operational advantages. It stores dozens of recipes and allows instant changeover between plain pancakes and filled products. Precise heat and time control eliminates scorching or undercooking. This directly reduces material waste and raises the final yield. The automatic recording feature tracks each production run for quality assurance. Moreover, the whole line requires minimal manual intervention. This lowers labour expenses and boosts daily output. The result is a consistently tender, evenly browned pancake every cycle. Whether for a simple breakfast item or a popular Japanese confection, this production line delivers reliability and versatility.
