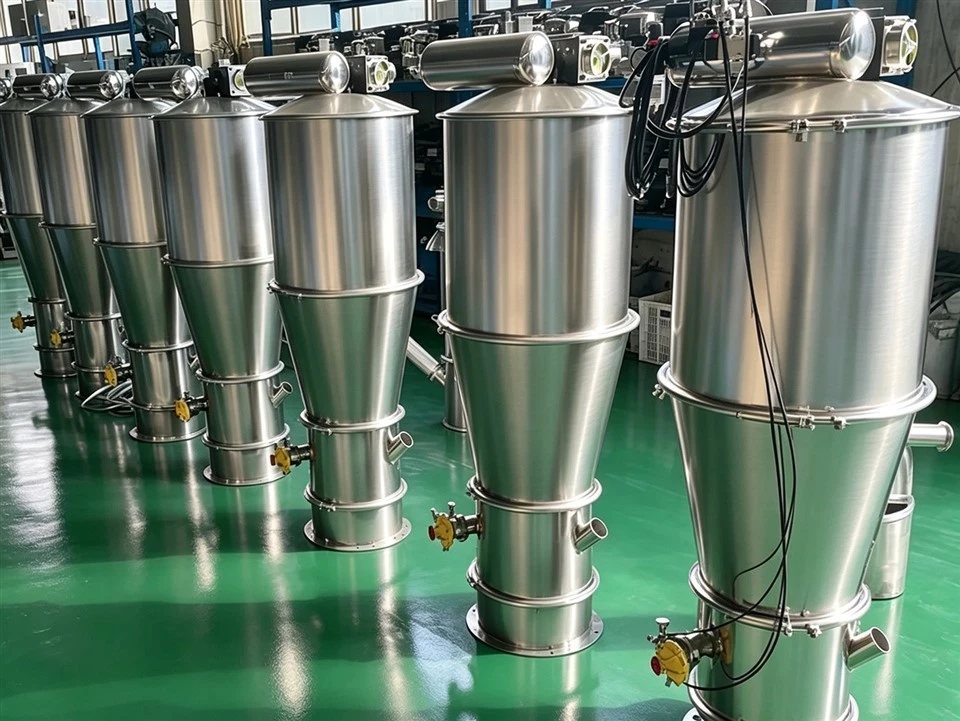

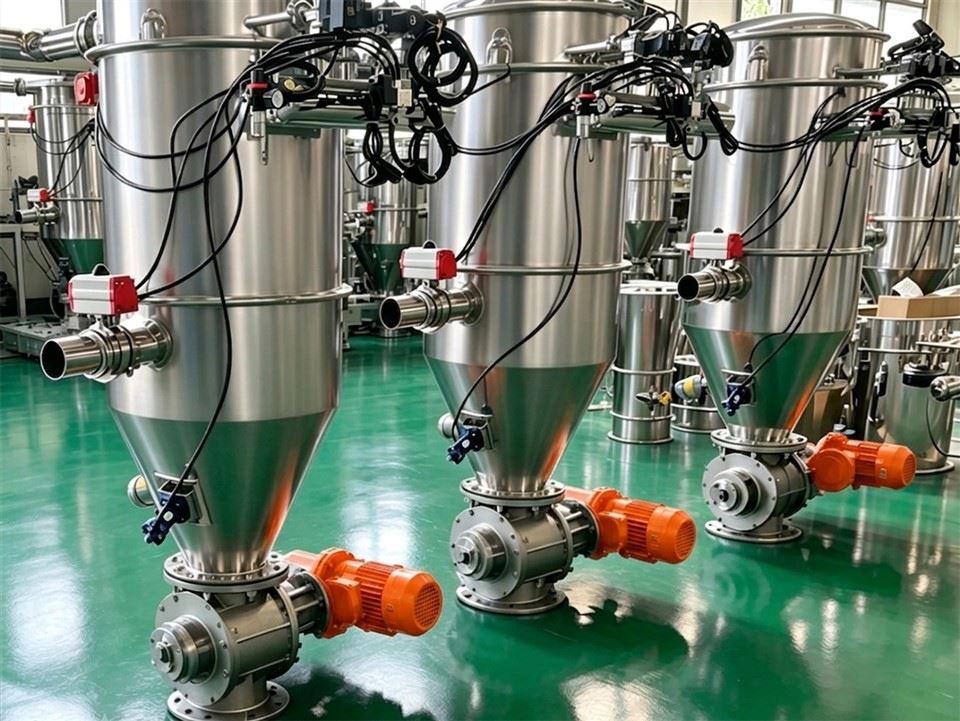

Negative Pressure Conveying System for Powder Materials

This system uses a vacuum pump or a roots blower to extract air from a sealed pipeline. This action creates negative pressure inside the line. The pressure difference between the material pickup point and the pipeline then draws powdery materials into the air stream. The materials travel through the pipeline and enter a separator, typically a cyclone or a filter receiver. There, the solids are separated from the air. The clean air passes through a filter and is discharged, while the collected powder falls into a storage silo or a process vessel. The entire transport loop is completely enclosed. No dust escapes to the surroundings during operation.

This conveying method offers stable and efficient transportation. It avoids environmental pollution and cuts down resource waste because there is no spillage. The system greatly improves the working environment by keeping the air clean and minimizing dust pollution. It enhances production efficiency and guarantees product quality. Since the pipeline is sealed, the materials are protected from moisture and contamination. The system also facilitates energy savings and emission reduction. Noise levels are lower compared to many mechanical conveyors. Moreover, it features automatic control. This reduces the need for manual operations and limits operator contact with the materials. As a result, production safety is significantly boosted. Automatic monitoring can track pressure, flow, and filter conditions, which supports preventive maintenance.

In the food processing field, negative pressure conveying is widely applied to materials such as flour, starch, seasonings, and additives. It is also suitable for other industries, including pharmaceuticals and chemicals, where dust control and hygiene are critical. The system can be designed with easy cleaning features to meet strict sanitary standards. Its gentle handling preserves the quality of fragile or sensitive powders.
